Plans that never made it.

These are plans or drawings found in the PTM Archives that never saw the light of day.

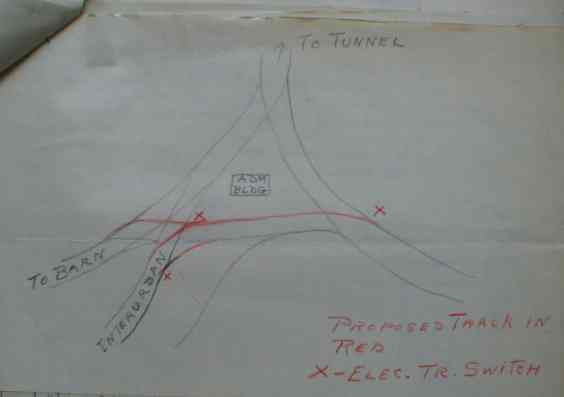

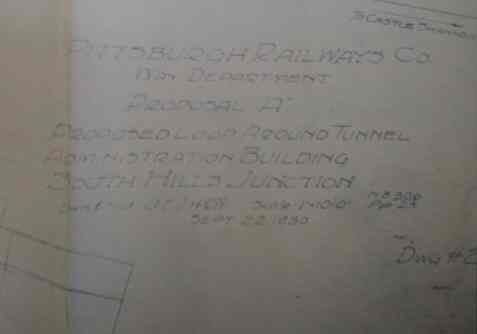

These first two images I took with my digital camera.  These are not module plans, they actually came from the PRCo archives.  I don't know what would be gained by making a  complete loop around the building.  Cars coming out of the tunnel or from Knoxville could be turned around without going through the shop area.  I suppose that is why it was never built.

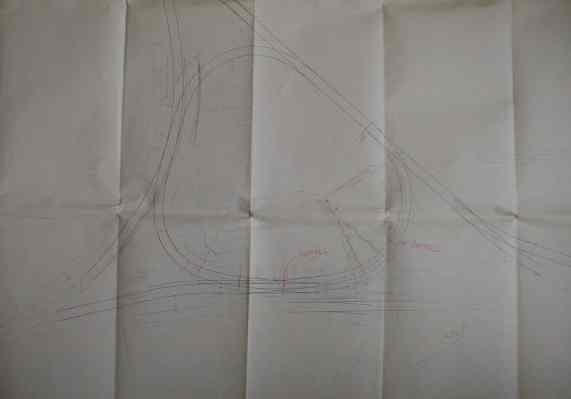

Someone must have been trying to find a use for excess track and switches. No information is available on this plan.

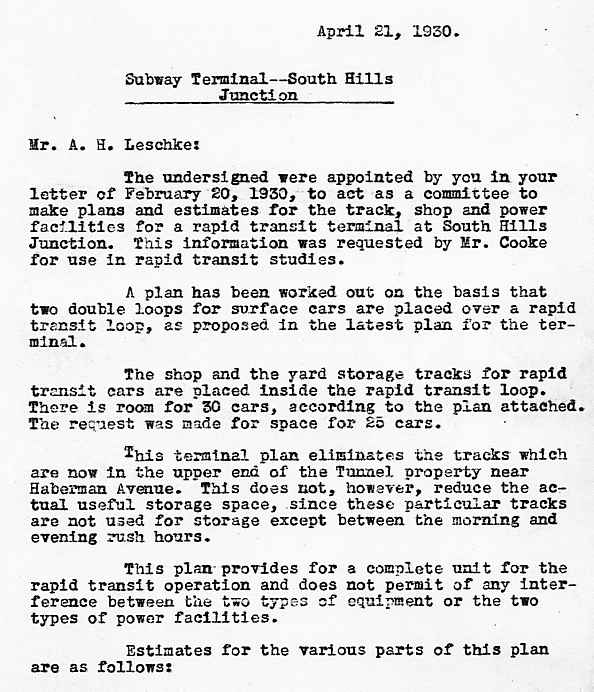

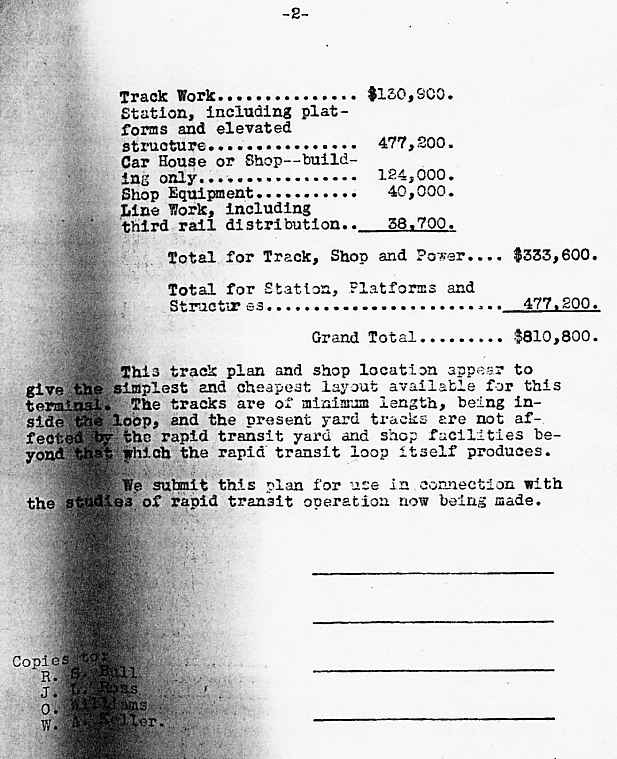

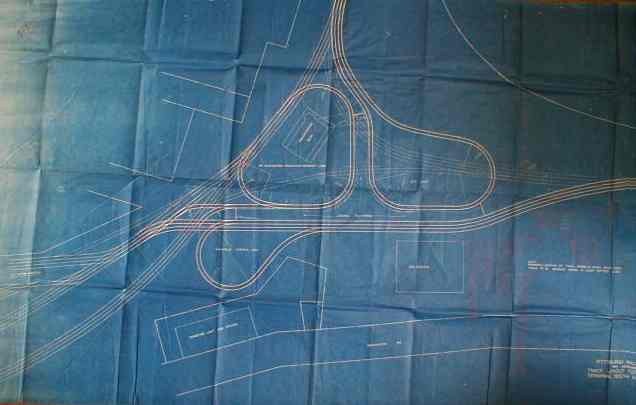

Apparently some real consideration was given to a "Rapid Transit" system in Pittsburgh as this 1930 letter and plan testify.
