5000-5549

Single end double truck low floor cars.  45' length over buffers, width 7' 9 1/2", weight 40,000 lbs.  Seating capacity 52 when operated as a single unit and 56 if it was the second car in a train. Arch bar 5'6" wb trucks with 4 Westinghouse 37.5 hp motors.  Built by Pressed Steel Car Co and Bradley Car Co. See Traction Heritage Vol. 1 no. 6 page 36.  The 5000 cars had a front door on one end only.  They had longitudinal seats in the front section and opposite the center door and cross-seats in the rear.

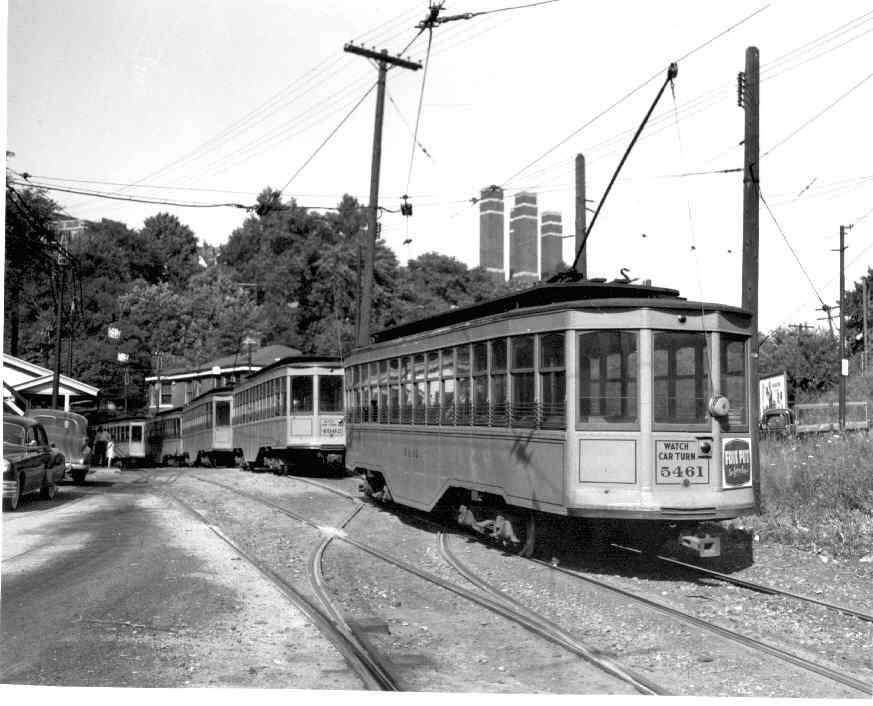

5461 is 5 deep in the queue through the Junction

From the collection of Fred W. Schneider III.

Other Pictures of this series:

(Use your "Back" button to return)

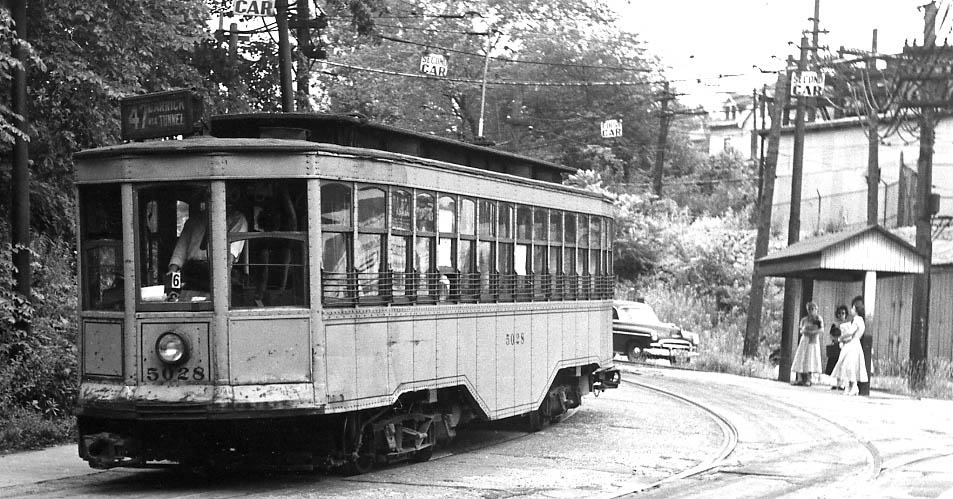

5028 on route 47 'Carrick via Tunnel' is about to enter the tunnel on July 3, 1952.

                      Picture by Bill Vigrass, printed by Rich Allman.

On a rainy August day in 1946 5058 follows 5034 into South Hills Junction.

                      Picture by Bill Vigrass, printed by Rich Allman.

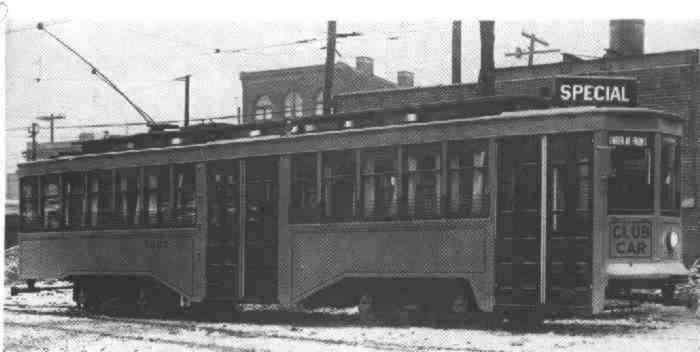

Car 5535 was decked out as a club car and used for charter service and company entertainment.

                      Reproduced with permission of The Miller Library, Pennsylvania Trolley Museum.

Car 5432, of this series, was converted to Traffic Paint car M-134 at Homewood Shops and entered work car service in September 1957. It spent the latter days of its revenue life in South Hills (5432) probably spent the bulk of its life as M134 at South Hills also. It was scrapped at Tunnel Car house on August 4,1967.

                      Ken Douglas Photo from the Bill Volkmer collection on Dave's Railopix.
