4420-4423

The prototype single end double truck low floor cars these 4 units were converted from trailers A217, A247,A283, and A384.  They were the first to receive the "baby" motor designed by P. N. Jones and F. R. Phillips that allowed 3 1/2" clearance on 24" wheels.  The cars were 45' length over buffers, width 8'3", seating capacity 58-60 and rode on arch bar trucks.   Motorizing the cars with 4 Westinghouse 30 hp motors and PRCo controllers increased the weight from 22,300 lbs to 34,000 lbs.  Built by Standard Steel Car Co.

628

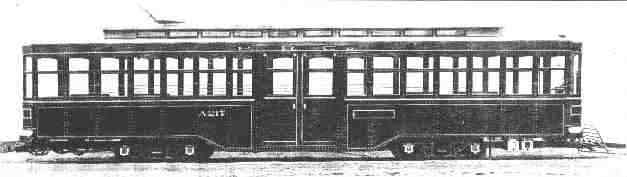

Still wearing A217 this car has just been motorized.

From a Traction Heritage reprint.

Other Pictures of this series:

(Use your "Back" button to return)

A217 in an early view trying to pull a trailer.

                      From a Traction Heritage reprint.
